General Description

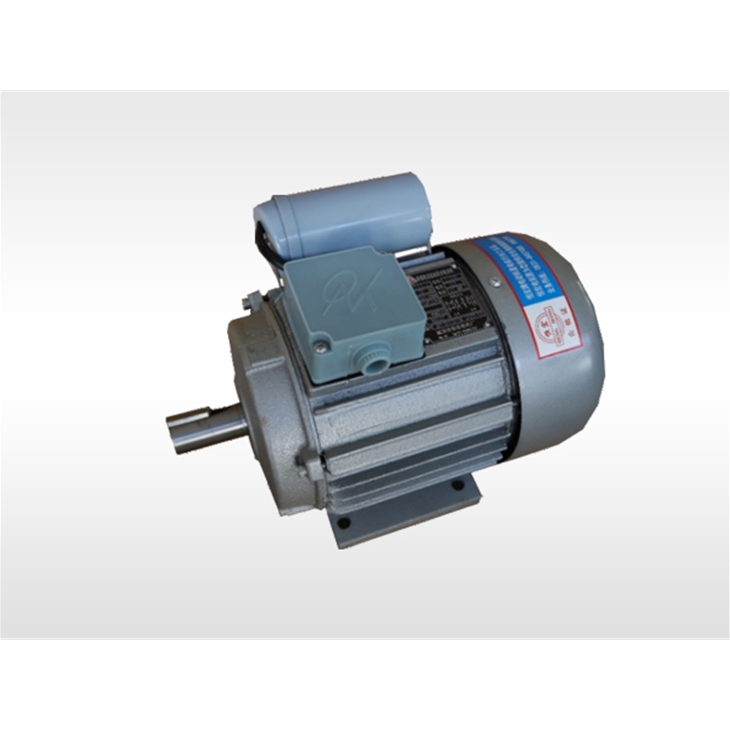

YC series motor is the fully enclosed sinale-phase, asynchronous motor, with the latestdesian Withfeatures like simple structure, reliable performance,easy maintenance andachievement of technicaleconomic targets,the product have been widely used in the aicompressor. pump, refrigeratorwashing machine, medical equipment. woodworkingmachinery, all kinds of agricultural machinery andso on YC motor series have ProtectionClass oflP44,insulation Class B.Cooling Method oflC0141.

Working conditions
Ambient operation temperature: lt may vary with the changing weather butnever exceeding 40℃
Altitude: Not more than 1000m;
Rated frequency:50Hz
Rated Voltage:220V
Operation Mode: Consecutive (S1)

Mounting arrangement
Mounting arrangement of the motor:
Frame size of71 -80:(IM)B3B5,B1 4, B34,V1 .V3,V5,V6:V18,V19
Frame size of9 0:(lM )B3.B 5,B1 4,B3 4,B 3 5, V1 ,V3:V5.W.V18.V19.V36
Frame size 01 100.132:(M) B3 85,B3 5 .V1 .V3.V5.V6.V36

Technical Date

Mounting and Overall Size

Mountingand Overall Size of lBM3

Mountingand Overall Size of lMB34

Mountingand Overall Size of lMB35

Mountingand Overall Size of lMB5

Mountingand Overall Size of lMB14
